ATHENA-D

ATHENA-D

Power: 40-720W
Control: DALI/1-10V dimming
Certificate: ETL/DLC Premium/CE/CB/IP67/IK10

￥ 0.00
0.00


Power: 40-720W
Control: DALI/1-10V dimming
Certificate: ETL/DLC Premium/CE/CB/IP67/IK10

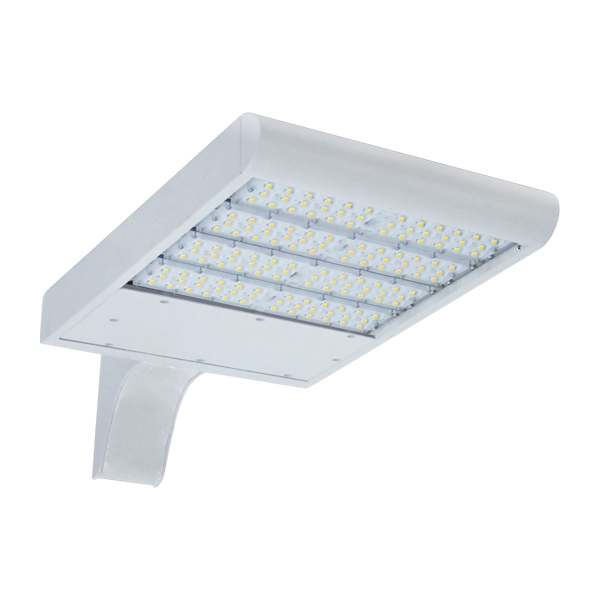

The ATHENA-D decorative area light designed for retrofit as well as for new construction.
It provides the best solution of energy savings for Car Parking, Big Box Retail applications
or any site requiring high lumen output of controlled and uniform light levels with advanced
optic of multiple light distributions.


  • Shoebox with decorative arm aesthetic design
  • Modular design allows for easy installation and hassle-free maintenance
  • Decorative mounting arm for existing square/round pole
  • Durable powder coat paint finish with 1000-hour salt spray exposure rating
  • Standard 10kV/5kA enhanced surge protection that meets ANSI 136.2-2015 standard
  • Mutiple optic lens option where needed for best lighting performance
  • 12-hour burn-in and 100% tested to performance specifications
  • ETL/CE/CB/DLC V5.1 Premium
  • Photocell/1-10V/DALI/Motion Sensor are available
  • 5/7-Year Standard Warranty

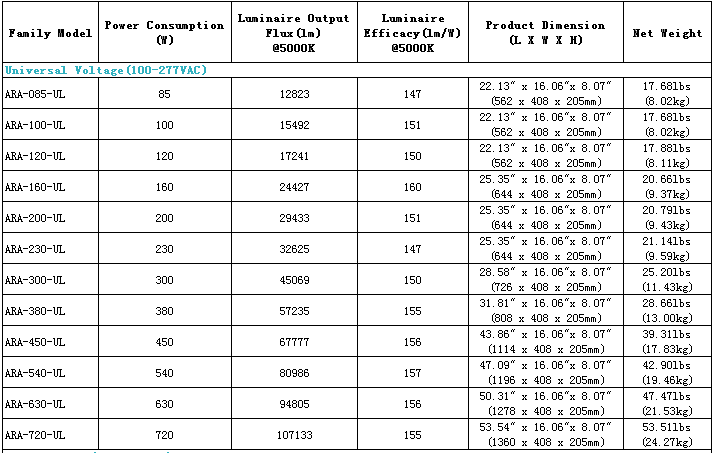

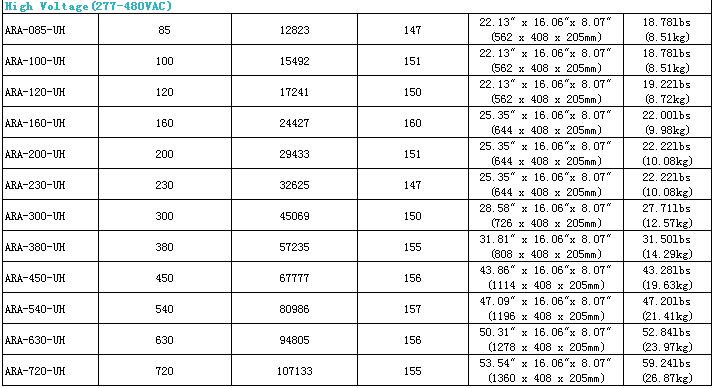

Technical Parameter
Spec. Sheet
Title
 Last Editted
Contact sales for support

IES file
Title
 Last Editted
Contact sales for support

Installation Instructions
Title
 Last Editted
Contact sales for support
