ATHENA-T

ATHENA-T

Power: 40-720W
Control: DALI/1-10V dimming
Certificate: ETL/DLC Premium/CE/CB/IP67/IK10

￥ 0.00
0.00


Power: 40-720W
Control: DALI/1-10V dimming
Certificate: ETL/DLC Premium/CE/CB/IP67/IK10

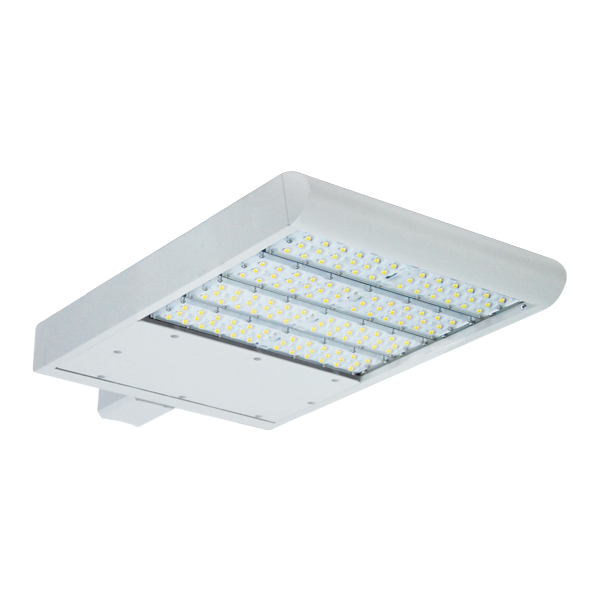

The ATHENA-T is a shoebox appearance, embodies the highest level of functionality with extraordinary efficacy which
maximizes your application efficiency providing high levels of light for minimal cost specifically on automotive dealerships,
carparks and streets/roadways where direct lighting is required. Universal mounting arm to facilitate quick and easy installation.

  • Shoebox appearance for Retrofit
  • Modular design allows for easy installation and hassle-free maintenance

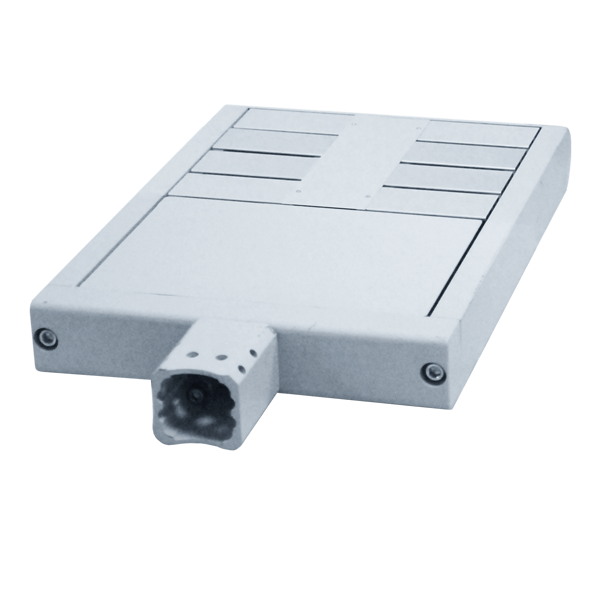

  • Universal mounting arm for existing square/round pole
  • Durable powder coat paint finish with 1000-hour salt spray exposure rating
  • Standard 10kV/5kA enhanced surge protection that meets ANSI 136.2-2015 standard
  • Mutiple optic lens option where needed for best lighting performance
  • 12-hour burn-in and 100% tested to performance specifications
  • ETL/CE/CB/DLC V5.1 Premium
  • Photocell/1-10V/DALI/Motion Sensor are available
  • Tool-less entry maintenance available for street lighting
  • 5/7-Year Standard Warranty

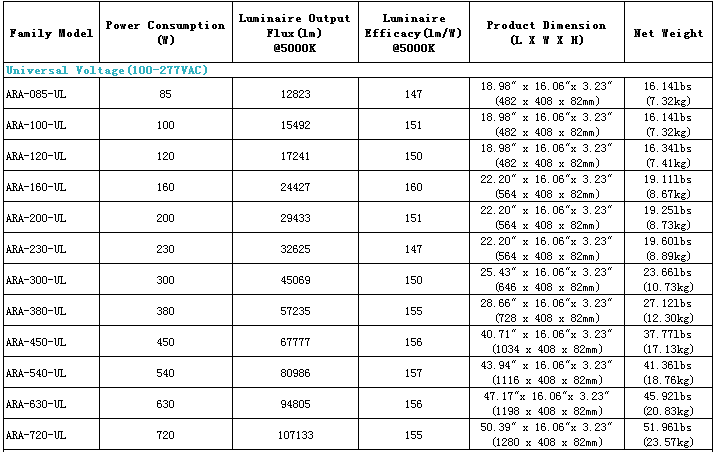

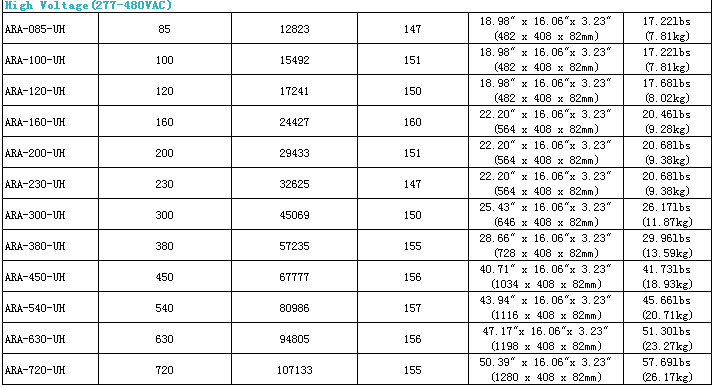

Technical Parameter
