CSC LIGHTING​​​
NUMEM

NUMEM

Power: 250-1500W
Control: DALI/1-10V dimming
Certificate: CE/IP65/IK08

￥ 0.00
0.00


Power: 250-1500W
Control: DALI/1-10V dimming
Certificate: CE/IP65/IK08

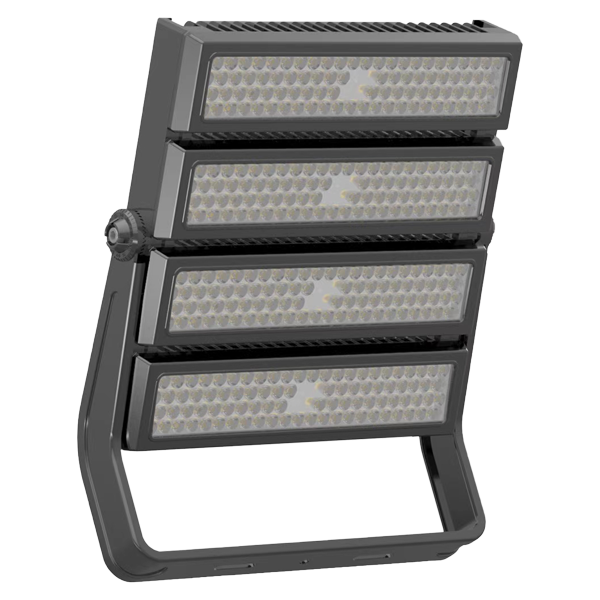

The NUMEN is extrusion aluminum housing and modular engine design with separated proprietary thermal
management to insure low LED junction temperature. The low profile and aesthetics design makes it suitable
for a wide range of commercial and industrial applications. Utilizing anti-aging silicone rubber, the fixture is completely sealed
completely sealed and gasketed, IP65 rated for outdoor application.


  • Modular design allows for easy installation and hassle-free maintenance
  • Slim & low profile body that minimizes wind load
  • Durable powder coat paint finish with 1000-hour salt spray exposure rating
  • Standard 10kV/5kA enhanced surge protection that meets ANSI 136.2-2015 standard
  • Mutiple optic lens option where needed for largest energy saving
  • 12-hour burn-in and 100% tested to performance specifications
  • 1-10V/DALI/DMX/Wireless Intelligent control are available
  • 5-Year Standard Warranty

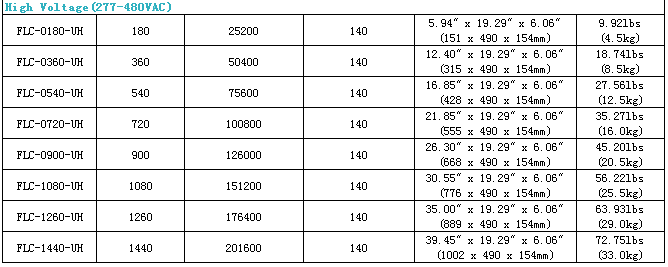

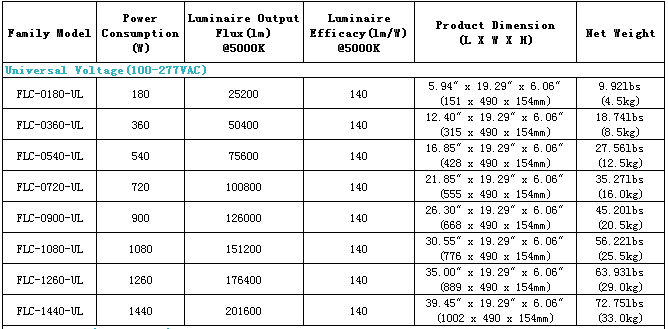

Technical Parameter
